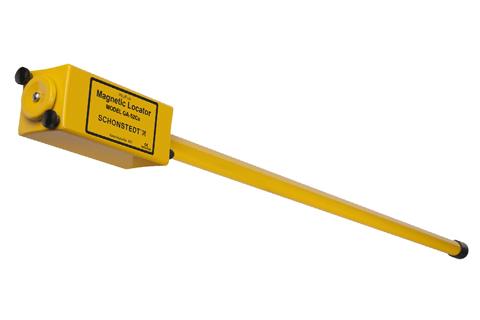

The GA-52Cx Locator is a highly sensitive device designed to detect the magnetic field of iron and steel objects. It features a user-friendly design with only two controls, located on the underside of the cover for easy one-hand operation. The On/Off-Sensitivity and Volume controls contribute to the device's ruggedness and durability.

Key Features:
High Sensitivity with 5 Levels: HeliFlux sensors provide exceptional sensitivity, allowing the locator to detect objects up to a depth of 5.5m (18'). No Response to Aluminum, Brass, or Copper: Eliminates false locates.


Modular Construction: The magnetic locator is designed with high-performance components, making it rugged, straightforward to maintain, and repair, resulting in low overall total cost of ownership.
Speaker Audio Output + Headphones: Offers an idle tone in the speaker with a frequency that increases or decreases based on gradient-field intensity.


HeliFlux® Sensors: Patented magnetic field sensors provide higher sensitivity than standard ring core sensors, giving users an advantage in locating deeply buried objects.


Hard Case: Protects the locator from damage when not in use and during transportation in equipment vans or trucks.
7-Year Warranty: Provides users with confidence in the product's low total cost of ownership, as it is backed by a 7-year warranty—longer than many competitors.


Technical Specifications:

Input Power: Two 9V batteries.
Battery Life: 40 hours (intermittent usage).
Output: Approximately 40 Hz idle tone in speaker.
Weight: Approximately 2.5 lb (1.13 kg).
Operating Temperature: -13° to 140°F (-25° to 60°C).
Overall Length: 42.5" (107.4 cm).
Waterproof Length: 34.5" (87.6 cm).
Nominal Sensor Spacing: 20" (50.8 cm).
Construction: Rugged, modular, all-solid-state in an aluminum casing.
