🎧 Acoustic Locators Overview

Acoustic pipe locators are specialized tools used in the detection and location of underground pipes and utilities.


🔊 These devices work by detecting the sound vibrations that travel through pipes when they are in use or when a specific sound is introduced into them.


Utility locators might use knocking a pipe with a screwdriver to check pipe connections, but we will be curating information about advanced methods of acoustic locating technologies, products and methods.


On this page we will go into detail about the theory of how they work and their infield applications for utility locating.

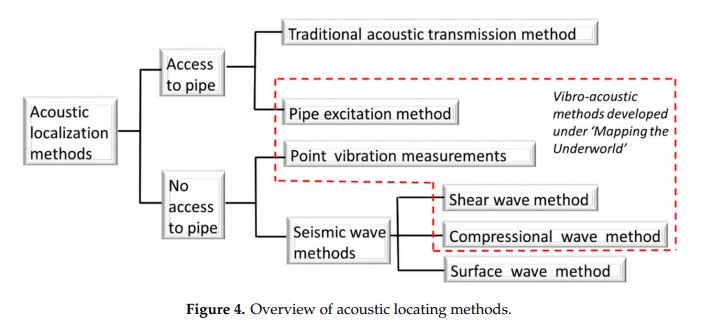

Overview Theory of Acoustic Locating

So, What is the theory of Acoustic Locating? We will explore this question specifically for for Utility Locators, surveying and excavation

🔊 Sound Generation: A sound signal is generated either by the natural flow of water or gas in the pipes or by using a mechanical device like a ground microphone or a specialized transmitter that introduces sound into the pipe system.


🔉 Sound Propagation: The sound travels through the pipes, and its vibrations are transmitted through the ground surface above.


🎧 Detection: An acoustic locator, equipped with sensitive ground microphones or sensors, is used to detect these vibrations. The operator moves the locator over the ground surface, listening for the sound signal.


👂 Location Identification: The point of strongest sound signal typically indicates the location of the pipe. By moving the locator around and measuring where the sound peaks, the operator can trace the path of the pipe.

Acoustic Technology Comparison Q&A

Acoustic (Noise) Technology comparison questions and answers overview capabilities.


Can find ferrous objects? No

Can find non-ferrous objects? Yes

Works in silty soil? Possible

Works in clayey soil? Possible

Works in organic soil? Yes

Works in sandy soil? Possible

Min frequency (KHz): 0.05, 0.06

Available frequencies: ~

Max frequency (KHz): 4-6

Effort, training for data interpretation: Low/Med, manufacture training, online course, in-person field training recommended.

Relative cost: Medium (Price ranges are $900-$1500, $1800-$2600, upto $10,000-$15,000)

Max depth: 3.5m

Specific Applications: Used for detecting and pinpointing liquid leaks in pipes, also some models are specify for leak detection with cast iron or PVC pipes.

Specific Utilities that can be located:  cast iron pipelines and/or pvc water pipes.

✅ Applications of Acoustic Locating

Acoustic locators have a range of uses in utility locating, including:

🚰 Water Pipes: Locate non-metallic pvc water lines that cannot be found with traditional electromagnetic locators.


⚠️ Gas Lines: Identifying buried gas pipes, especially useful for plastic pipes that do not conduct electricity.


💧 Leak Detection: Helping to pinpoint the location of leaks in pipes by listening for the sound of escaping water or gas.

✔️Advantages of Acoustic Locating

What are the Advantages of Acoustic Locating?
Here is a list of some and context for utility locating.


Non-Invasive: Acoustic pipe locators allow for the detection of specific water pvc pipes in various soil conditions.


Versatile: Effective in locating non-metallic pipes, such as PVC or asbestos-cement, which are not detectable with metal detectors.


Sensitivity: Can detect pipes at various depths, depending on the soil conditions and the loudness of the sound being emitted from the pipes.

🚫 Limitations of Using Acoustics

What are the Limitations of Acoustic Locating Methods?
Here is a list of some of the limitations of acoustic locating.


🟤 Soil Conditions: Their effectiveness can be reduced in certain soil types that dampen sound vibrations.


📣 Background Noise: High levels of ambient or background noise can interfere with the detection process.


🔉 Depth Limitation: The depth at which a pipe can be detected is limited by the strength of the sound signal and the sensitivity of the locator.

🤔 Conclusion of Acoustics Locating.

What's the conclusion of acoustics and using noise transmitters and receivers for utility locating for excavation? They can be essential tool for saving time, money and avoiding personal injury or asset damages.

Acoustic pipe locators are invaluable tools in the utility and construction industries, providing a means to safely and efficiently locate underground pipes and avoid accidental damage during excavation activities.

📚🎓 Acoustic Utility Locating Knowledge Quiz

🧠 Test you knowledge about Acoustic utility locating.
Click the link to take you to a google form quiz. 🏋️ Its free and you can get the questions and answer sent to your email. 📧

https://forms.gle/1j77ZYWEcMhvBbZw5

🎞️ Acoustic Locating Training Video

▶️ Locating a PVC water pipe with GPR and acoustic locating
https://www.youtube.com/watch?v=r9-hev7ie7Y

▶️ Locating an Unlocatable Water Pipe - Acoustic Locator to the Rescue!
https://www.youtube.com/watch?v=VyJrReen-ng


▶️ GPR/EM/ and Acoustic Locating
https://www.youtube.com/watch?v=oEdLF6vwXxk

▶️ Plastic Water Pipe Locating
https://www.youtube.com/watch?v=Mbzw48FaEng

▶️ Locating Plastic Water Lines
https://www.youtube.com/watch?v=ugLyZ67ejos
